Can I create a PNG (no BG) video of my GS video?

Posted: Mon, 21st Mar 2011, 6:31pm

Post 1 of 13

Moonloon1

Force: 2344 | Joined: 15th Oct 2007 | Posts: 334

VisionLab User VideoWrap User MacOS User

Gold Member

I want to create a PNG (no BG) video (from a Greenscreen video) that I can drop into FCP as the background could change. I don't want to be stuck with a final BG that the client might not like. This is an ethereal dream like music video. Can this be accomplished with VisionLab Studio?
Posted: Mon, 21st Mar 2011, 8:16pm

Post 2 of 13

Axeman

Force: 17995 | Joined: 20th Jan 2002 | Posts: 6124

VisionLab User VideoWrap User PhotoKey 5 Pro User MuzzlePlug User PowerPlug User PhotoKey 3 Plug-in User FXhome Movie Maker FXpreset Maker MacOS User

SuperUser

Yes, its possible to export with alpha transparency. I'd recommend using the Quicktime Animation codec over a series of PNG images, as its simpler to manage a single video file, but PNG files should work just as well, if that's what you prefer.
Posted: Mon, 21st Mar 2011, 8:26pm

Post 3 of 13

Moonloon1

Force: 2344 | Joined: 15th Oct 2007 | Posts: 334

VisionLab User VideoWrap User MacOS User

Gold Member

I think I got it, I'm rendering a short clip right now but I used Apple Intermediate Codec will this work? Thanks for the quick reply, I used the alpha channel info link for the setting alpha channel, guess I'll find out shortly.
Posted: Mon, 21st Mar 2011, 9:06pm

Post 4 of 13

Axeman

Force: 17995 | Joined: 20th Jan 2002 | Posts: 6124

VisionLab User VideoWrap User PhotoKey 5 Pro User MuzzlePlug User PowerPlug User PhotoKey 3 Plug-in User FXhome Movie Maker FXpreset Maker MacOS User

SuperUser

Yeah, I've not tried alphas in the Intermediate codec, but the Animation codec is 100% reliable, handles them perfectly, and ensures zero quality loss in the footage. So if Intermediate doesn't work out for you, I'd recommend Animation.
Posted: Mon, 21st Mar 2011, 9:44pm

Post 5 of 13

Moonloon1

Force: 2344 | Joined: 15th Oct 2007 | Posts: 334

VisionLab User VideoWrap User MacOS User

Gold Member

Ok, that didn't work, FYI you get a ghost of the composite shot. I am rendering a short clip with Animation Codec. I was trying to keep all the clips AIC but the alpha's will have to be rendered anyway so it really doesn't matter. I'll let you know here in a few minutes.

Oh, but what setting do I set the clips in FCP 6.0.8? Control click shows a menu for add, subtract, difference, alpha et.... I'm guessing the alpha? Sorry but I'm just now trying to wrap my head around the alpha thing. Thank you for pointing me in the right direction.
Posted: Mon, 21st Mar 2011, 11:36pm

Post 6 of 13

Moonloon1

Force: 2344 | Joined: 15th Oct 2007 | Posts: 334

VisionLab User VideoWrap User MacOS User

Gold Member

Animation looked the same as AIC "ghosty". While that works on the segment where the singer is dead on a bed in a washed out white room. I then overlap the part of the video where he gets up (this one gan be ghostly) and his body stays on the bed, I used a freeze frame for that part. But I still can't get the video to come out clear. I am trying to render in PNG this time will see.So what am I doing wrong here?
Posted: Tue, 22nd Mar 2011, 1:51am

Post 7 of 13

Axeman

Force: 17995 | Joined: 20th Jan 2002 | Posts: 6124

VisionLab User VideoWrap User PhotoKey 5 Pro User MuzzlePlug User PowerPlug User PhotoKey 3 Plug-in User FXhome Movie Maker FXpreset Maker MacOS User

SuperUser

Can you explain what you mean by "ghosty"? Is the footage interlaced? Are you sure that your key is clean?
Posted: Tue, 22nd Mar 2011, 9:14am

Post 8 of 13

Simon K Jones

Force: 27955 | Joined: 1st Jan 2002 | Posts: 11683

VisionLab User VideoWrap User PhotoKey 5 Pro User MuzzlePlug User PowerPlug User PhotoKey 3 Plug-in User FXhome Movie Maker FXpreset Maker Windows User

FXhome Team Member

Are you able to upload a sample for us to take a look at?
Posted: Tue, 22nd Mar 2011, 5:10pm

Post 9 of 13

Moonloon1

Force: 2344 | Joined: 15th Oct 2007 | Posts: 334

VisionLab User VideoWrap User MacOS User

Gold Member

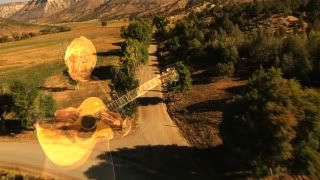

Thats what I mean by ghosty. I have tried with AIC, Animation and PNG but all are getting the same results. I used the key in FCP and got it to work but I would like it cleaner.
Posted: Tue, 22nd Mar 2011, 6:10pm

Post 10 of 13

Axeman

Force: 17995 | Joined: 20th Jan 2002 | Posts: 6124

VisionLab User VideoWrap User PhotoKey 5 Pro User MuzzlePlug User PowerPlug User PhotoKey 3 Plug-in User FXhome Movie Maker FXpreset Maker MacOS User

SuperUser

Are you sure the blend mode in FCP is set to Normal? It looks like there is an Add blend going on, or something.
Posted: Tue, 22nd Mar 2011, 7:47pm

Post 11 of 13

Moonloon1

Force: 2344 | Joined: 15th Oct 2007 | Posts: 334

VisionLab User VideoWrap User MacOS User

Gold Member

In FCP a Normal setting gives me a black BG, I tried them all. Am I using the wrong setting on the clip or is there another setting in the top menu for this?
Posted: Tue, 22nd Mar 2011, 9:26pm

Post 12 of 13

Axeman

Force: 17995 | Joined: 20th Jan 2002 | Posts: 6124

VisionLab User VideoWrap User PhotoKey 5 Pro User MuzzlePlug User PowerPlug User PhotoKey 3 Plug-in User FXhome Movie Maker FXpreset Maker MacOS User

SuperUser

If normal gives you a black background, that's good, and that's the one you should use. The black background just means that the alpha channel isn't being applied yet, so you need to adjust the alpha mode to make sure the alpha is being applied. Open the Item Properties for the item, and change the alpha mode there.

I guess its worth double-checking; did you exactingly follow the instructions in the link I provided earlier, for alpha rendering?
Posted: Tue, 22nd Mar 2011, 11:09pm

Post 13 of 13

Moonloon1

Force: 2344 | Joined: 15th Oct 2007 | Posts: 334

VisionLab User VideoWrap User MacOS User

Gold Member

Yes, I have it bookmarked and referred to it while I was creating the clip (I have dual screens). "Open the Item Properties for the item, and change the alpha mode there." Ahh I didn't try that yet... I'll let you know. Thanks for all the help
